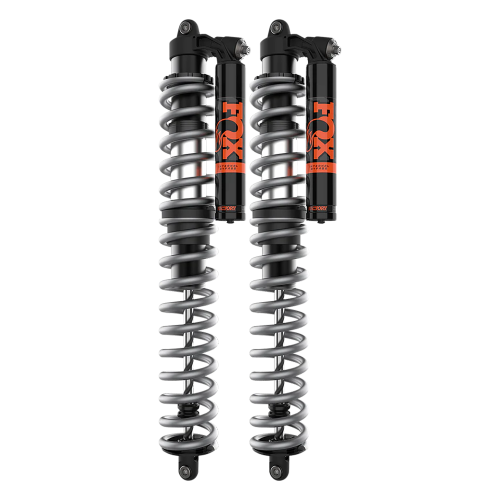

Fox Factory Race Series 3.0 Internal Bypass Reservoir Adjustable Rear Shocks for Polaris RZR Pro XP

Factory Race Series 3.0 Internal Bypass shocks with Dual Speed Compression (DSC) use the same race-proven, position-sensitive damping technology developed in desert truck racing. Take your PRO XP from capable to incredible.

Use the adjusters to dial in your suspension to tailor ride conditions, manage load, and modify the vehicle’s handling. The shocks feature independent high- and low-speed compression adjusters, wide-range rebound adjusters, and a dual-rate spring package with adjustable crossover rings, to fine-tune the vehicle’s ride dynamic.

Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping force through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing. Shock fluid bypasses the main piston through a series of bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston.

Bolt-on Factory Race Series shocks with Internal Bypass to redefine your PRO XP’s capability.

Specs:

• Travel:  13.58
• Extended Length:  38.88
• Compressed Length: 25.3
• Top Mount:  Eyelet
• Bottom Mount:  Eyelet
