SuperATV Honda Pioneer 520 6" Portal Gear Lift
- Availability: In Stock
- Brand: Super ATV
- Model: PGH-6-Pioneer-520
Available Options
REQUIRES Aftermarket Suspension
These Pioneer 520 portals require an 18” wheel and tires to match. That means these portals MUST be paired with offset A-arms or a suspension lift kit not offered by SuperATV.
Features:
- Available with billet or cast aluminum housing
- Cool, quiet, precision-ground gears made from 9310 alloy billet steel
- 1.5 in. diameter 4340 hardened steel drive shaft
- Housings use gaskets or O-rings that don’t let anything through
- Universal hub fits all major bolt patterns
- Gear reduction reduces stress on your drivetrain
- Lighter than the competition
Do More with Honda Pioneer 520 Portals
Your Honda Pioneer 520 isn’t the ultimate mud monster. But it could be with SuperATV’s 6” Portal Gear Lift. It gives you a lift and gear reduction in one package—you get more ground clearance and tons of extra torque. Choose a billet or cast aluminum housing and a 30% or 45% gear reduction. Whether you ride on mud, creeks, trails, or rocks, GDP Portals will help you conquer them all.
- Gives you a 6” lift and a gear reduction in one package
- Choose a 30% or 45% gear reduction
- Maintains OEM suspension angles
- REQUIRES aftermarket suspension to clear 18” wheels and matching tires
Honda Pioneer 520 Portals Let You Ride the Way You Want
GDP Portals give you tons of choice. Choose a 45% gear reduction for maximum torque for big tires—perfect for mud and rocks. Choose a 30% gear reduction for a smaller torque but a higher top speed—great for trail riding while still being perfectly capable of taking on tougher terrain.
GDP Portals Save Your Drivetrain
These Honda Pioneer 520 portals put the gear reduction in the hub, so your whole drivetrain benefits. That means your axles, differential, prop shaft, and transmission avoid extra wear thanks to GDP. Portals also keep your stock suspension geometry so you don’t overextend your axles.
Honda Portals That Are Built Tough
GDP Portals are built to be the toughest. They use 5/16” advanced steel alloy backing plates and precision-engineered aluminum housings so you can ride the way you want.
- Our housings are reinforced for gear retention and optimized for oil flow
- Advanced steel alloy backing plates are stronger than chromoly
- Enhance with Portal Blood—gear oil formulated for GDP Portals
- There are no gimmicks and no vents because vents do more harm than good—we know because we tested them
Advanced Gaskets, Seals, and Bearings
Our portals use:
- Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
- A sealed input gear and double-lipped output seal
- 100% sealing coverage throughout so you can forget about oil leaks
- Double-angular contact output bearings to prevent premature wear
- Roller idler and drive bearings to maintain perfect gear meshing
6” Portal Gear Lift Includes:

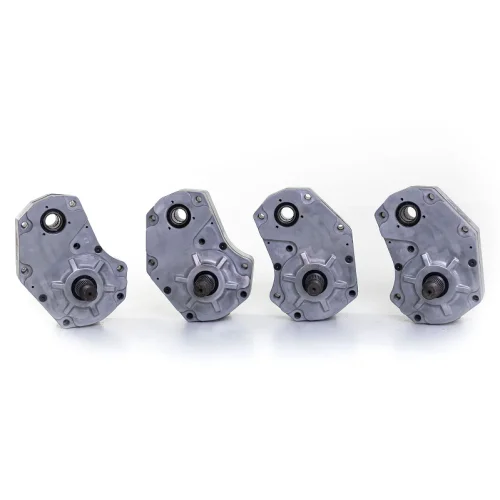

- (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
- (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (2) Steel caliper mounting plates
- (4) Caliper adapter plates, (2) Steel steering arms, Steering stop kit, Extended brake lines, and All required hardware, including recessed castle nut socke
1Lift Kit Specs | |
Make | Honda |
Model | Pioneer |
Size Lift | 6" |
Wheel Requirements
18” or larger wheel required. Therefore, it is NOT compatible with stock suspension and REQUIRES aftermarket suspension
Wheels cannot exceed 4-1/2” backspacing
Wheels need to have a center hole of at least 3.25" (82.55 mm) or require a 1” wheel spacer
