High Lifter Dual Idler Portal Gear Lift 8" - Polaris Ranger 1000 (XP and Non-XP)
- Availability: In Stock
- Brand: High Lifter
- Model: HL-Portal-8-DI-Ran1000
Available Options
High Lifter Portal Gear Lift 8” Polaris Ranger 1000 (Non-XP) - 60% Dual Idler
Fits:
Please check fitment carefully when selecting which kit you need. If you are unsure of fitment, please call us or utilize our chat feature to ask any questions you may have. 850-912-4350
Kit 1 | Kit 2 | Kit 3 |
2018 Polaris Ranger 1000 XP | 2022 Polaris Ranger 1000 | 2022 Polaris Ranger 1000 XP Trail Boss |
Forged Gear Boxes
The High Lifter Engineers chose forged gear boxed over billet because the process of forging eliminates the occurrence of porosity and cavities that can reduce strength in a part. With 8” portals, you want them to be strong; the tight grain structure in our gear boxes makes them mechanically stronger than the alternative! Take on any terrain because these boxes will handle the impact!
- These portal boxes are extremely robust and give you more worry-free miles than any other portal – a badass portal deserves a badass box!
- Strongest boxes on the market because forging produces a tougher piece of metal – It is what it is!
- Forging is stronger than both cast and billet aluminum which is used by the competitor.
Brake lines
-
No need to replace factory brake lines, a brake line extension gives you an easier install and saves a lot of time!
- Large advantage for Can-Am owners!
Gear Box Venting
- Customers asked for box venting, and we give you the option
- Our box design offers a plug for venting with an optional easy to install kit that will be available soon
- Vent kits allow an advantage of cooling which reduces early deterioration of the gaskets and seals
Gasket Material and Design
- High density Kevlar fiber gaskets plus no additional sealant is needed
- Gasket material is creep resistant plus oil and coolant resistant
Seals
- Two oil seals on the spindle shaft for 100% more sealing area
- Dual seals prevent water intrusion and oil leaks
- True triple seal on the input shaft which includes a wiper seal that provides a significant extra layer of protection
Backing Plate
- These are the strongest backing plates on the market
- 5/16” steel plate with bent flanges for strength and durability
- Welded gusset brackets and designed to factory off-set
- Works with all control arms that are built to factory hub specifications
- Backing plates have an offset or “CLOCKED” 5” forward & rearward so you can run BIG tires and not interfere with your clearance!

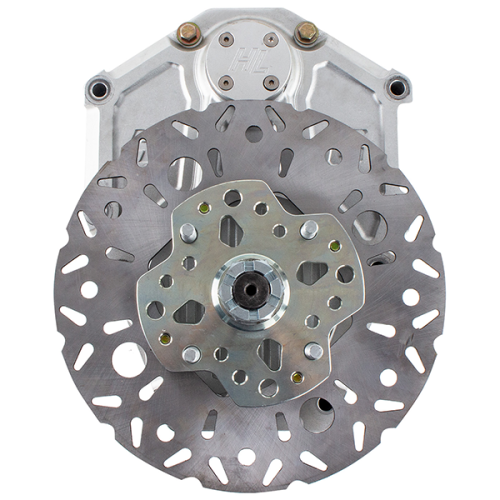

13” Rotor
- Precision ground stainless steel rotors (this is a big deal for brake performance)
- Access holes for ease of assembly and disassembly
- Slotted rotor allows for heat dissipation and cooling

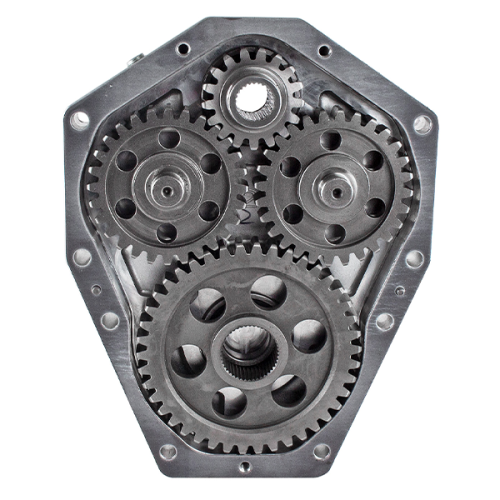

Gear Profile
- Alloy steel heat treating process increases overall internal and external strength
- CNC precision ground machining ensures excellent fitment and increased strength
- Controlled gear lapping for ease of installation and a quieter performance
| 1Lift Kit Specs | |
| Make | Polaris |
| Model | Ranger Fullsize |
| Size Lift | 8" |
