High Lifter Snorkel Gear Transmission Tool for Polaris Transmissions

  • Availability: In Stock
  • Brand: High Lifter
  • Model: 54-60872
$172.86
$190.95
Ex Tax: $172.86


Ships Monday if ordered in the next:
Day
Hour
Min
Sec
Estimated delivery by : Enter City & Zip

                                   High Lifter Snorkel Gear Transmission Tool for Polaris Transmissions

If you are a mechanic, work at a dealership or are capable of rebuilding a transmission, this tool is for you! It is very difficult to loosen the snorkel tube nut, particularly when the nut is stuck or sticking due to debris or metal shavings from the transmission - this tool solves that problem.

Note: This tool is NOT intended or recommended to be used with an impact wrench.

There is currently no tool in a standard toolbox that removes the nut easily. This tool is designed by High Lifter to help you properly remove or tighten the snorkel gear tube when replacing or upgrading the front output/snorkel shaft and output/snorkel gear in the main gear case. It can also be used to check the backlash on the output/snorkel gear in Polaris transmissions.

This tool is a superior design and the most comprehensive on the market.

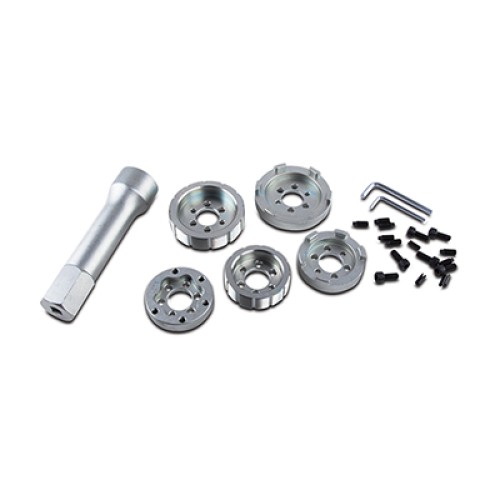

Features include:

  • Hardened 5140 alloy steel components with zinc finish.
  • Tool body accepts a 40mm wrench or socket as well as a 1/2in square drive to aid in installation and removal.
  • 3 heads to adapt the tool for different applications. Two heads machined and one with replaceable extended tip set screws.
  • 2 thread cleaning taps to remove chips and burs from transmission case.
  • Components secured with 8mm grade 12.9 bolts.
  • Pins to aid in tool assembly.
  • Installation tools and hardware included with replacement pins and bolts.
  •
  • Main tool has precision pins align the pin slots in the snorkel gear nut
  • Constructed of plain carbon steel, with 5 dowel pins for easy insertion
  • Smooth chrome finish for easy cleaning
  • Additional interchangeable caps that allow the tool to work on multiple transmissions
  • Caps have alignment pins and magnets to lock and secure them to the main tool.  Makes for easy change out!
  • Tool Mates to OEM Part # 3234278, 3236120, 3235947 & 3236423
  • Can be used with a 1/2" square drive ratchet for easy removal or insertion of the snorkel tube

We stand behind our product. If any pins are damaged, we will replace the tool with no questions asked. We take pride in the development of the tool and know that it will save you time and money.



Note: The main tool works on the most popular transmissions without the use of the additional adapters. The adapters will attach to the main tool using pin holes and magnets on the backside of the adapter. Once the adapter is attached to the main tool, it can then be used to repair additional transmissions. See Fits Tab or Instructions for all specific applications.

The main tool works with OEM part 3234278 (Ranger 570, 900/1000, General 1000, RZR 1000/900/570)

Adapter 98V works with OEM parts 3235947 & 3236423 (ALL TURBO MODELS)

Adapter 95D works with OEM part 3236120 (Ranger 1000 NEW BODY ALL MODELS)

Note: This tool replaces part # HL-TOOL-P-ST and HL-TOOL-P-ST-2.

This item is non-refundable.



Write a review

Note: HTML is not translated!
Bad Good
Polaris RZR 1000 XP 4 Premium (2022)
Polaris RZR 1000 XP 4 Premium (2023)
Polaris RZR 1000 XP 4 Sport (2022)
Polaris RZR 1000 XP 4 Sport (2023)
Polaris RZR 1000 XP 4 Ultimate (2023)
Polaris RZR 1000 XP Premium (2022)
Polaris RZR 1000 XP Premium (2023)
Polaris RZR 1000 XP Sport (2022)
Polaris RZR 1000 XP Sport (2023)
Polaris RZR 1000 XP Ultimate (2023)
