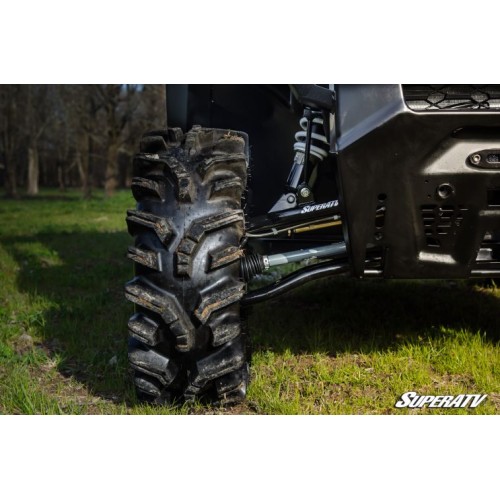

Polaris Ranger XP 1000 High Clearance 1.5" Forward Offset A-Arms

NOTE: If you have a 2017-2018 Ranger 1000 High Lifter Edition, you will need stock length Ranger 1000 axles and tie rods. High Lifter Edition length axles and tie rods are not compatible with this kit. Check out our stock length Rhino or Rhino 2.0 Axles.

Features:

• Adds 1.5” of forward offset
• Fit up to 28.5” tires*
• 1.25” tubing is 25% larger than stock
• Adjustable lower pivot block for full camber adjustability
• Utilizes stock A-arm bushings
• UV-resistant powder coat finish
• Easy to install
• Backed by a lifetime warranty

*At full compression a 28.5” tire may rub the trim and bumper on some machines.

More Stability and Better Rides
Your Ranger is rugged and it’s built for the off-road. If you want it to truly handle everything you encounter, you need to upgrade to SuperATV’s High-Clearance 1.5” Forward Offset A-Arms for the Polaris Ranger XP 1000. They’re stronger, come with full camber adjustment, and increase your wheelbase by 1.5 inches for more stability and room for up to 28.5” tires. It’s a win-win.

Bigger Tires and Better Clearance
The 1.5” forward offset gives you better tire clearance and room for up to 28.5” tires—all without a lift! A longer wheelbase also makes you more stable over hills and large obstacles. They make use of our unique dual-bend design to raise the profile of these arms so they won’t get hung up on rocks and other trail obstacles.

Superb Strength
Our beefed up 1.25” diameter tubing is 25% larger than stock and results in much stronger control arms. Ride hard and get wild. We want you to test the limits and ride with confidence. With the strongest suspension you can get, nothing will stop you.

Plus, they’re backed by a lifetime warranty.

Adjustable Pivot Blocks
You get full adjustability thanks to our adjustable pivot blocks. They come set to stock specifications right out of the box, so you don’t have have to mess with them if you don’t want to. But they let you tweak your camber to perfection if you bog down your suspension with a bunch of cab weight or add a small camber-crippling lift. You can dial it in so you don’t get any premature tire wear but you do get a better ride.

Let SuperATV Do the Work—Preassembly Available!
Want to spend more time on the trails and less time in the garage? Purchase a set of SuperATV ball joints with your A-arms and we’ll install them for you for free! We save you money and time so you can get back to doing what you love.

NOTE: You must re-use your stock ball joints if you don’t select a pre-installed ball joint at checkout.

Heavy Duty Ball Joints
Our heavy-duty ball joints are designed with ultimate performance and convenience in mind. Whether you’re doing flips or chasing hills, our proprietary blend of hardened 4340 VAR steel and zinc plating means this ball joint can take it. Our heavy-duty ball joints also come with easily-accessible grease zerks and an adjustable design. Extensive lab and field testing shows that our heavy duty ball joints can withstand double the pressure of an OEM ball joint!

Super Duty 300M Ball Joints
We took the strongest ball joint material on the market—300M grade steel—and combined it with our superior design engineering to make the strongest ball joint on the market. It comes with an easily-accessible grease zerk and an adjustable steel-on-steel design, making it easy to keep your ball joints maintained and flexible. At 2.25x stronger than stock, you won’t find a better ball joint.

Keller Ball Joints
Keller Ball Joints use a two-piece design that eliminates the need for a snap ring. They thread onto your A-arms like a nut and bolt, which makes these ball joints virtually impossible to pull out. The high-quality chromoly steel stud combined with an advanced tool-steel body makes them perfect for bigger machines, bigger tires, and bigger rides. And since they’re greaseable and rebuildable, you can keep them running perfectly.
